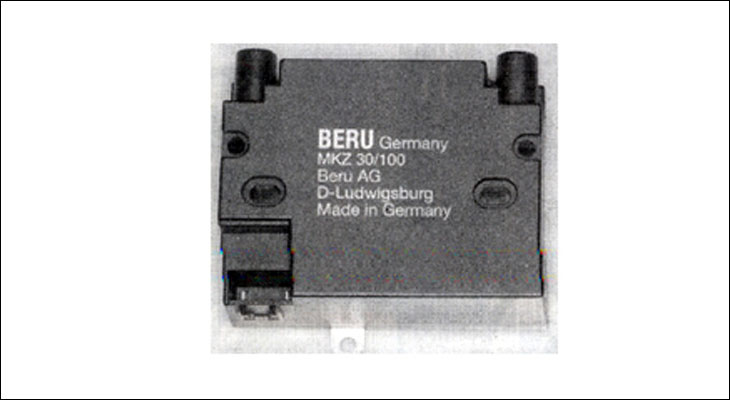

Technical Data - Ignition System MKZ 100 - ( Part No. 0 096 600 017 )
Operating Voltage : 230 V ( -15 % + 10% ) 50/60 Hz
Primary Current : 0.22 A
Output : 50 VA
Connections
Primary : 2 x flat plug 2.8 mm
Secondary : 2 x 4 mm drop-in pins
Ignition Voltage : 2 x 7.5 kV
Ignition Frequency : 25 / 30 Hz
Ignition Spark Energy : approx. 500 mJ
Duty Cycle : 100 %
Sparking distance : 1.5 - 3mm
Operating temperature : 0-60 0C
Fitting position : as required
Weight : 300 g
